My final design project of my undergraduate degree was a part of Ian Scott’s and Mark Bingham’s Unit 5 Studio ‘The Care home of the Future’. The project sought to reframe the position of the care home in our local communities and society as a whole. Instead our project aimed to place the care home at the centre of the community. The master planning and greater landscape strategy was designed in collaboration with my studio partner Myrto Efthymiadi.
Kirsty McGill Mann
The Care Home of the Future | Community Hub
Follow:
Project description
Collaborators

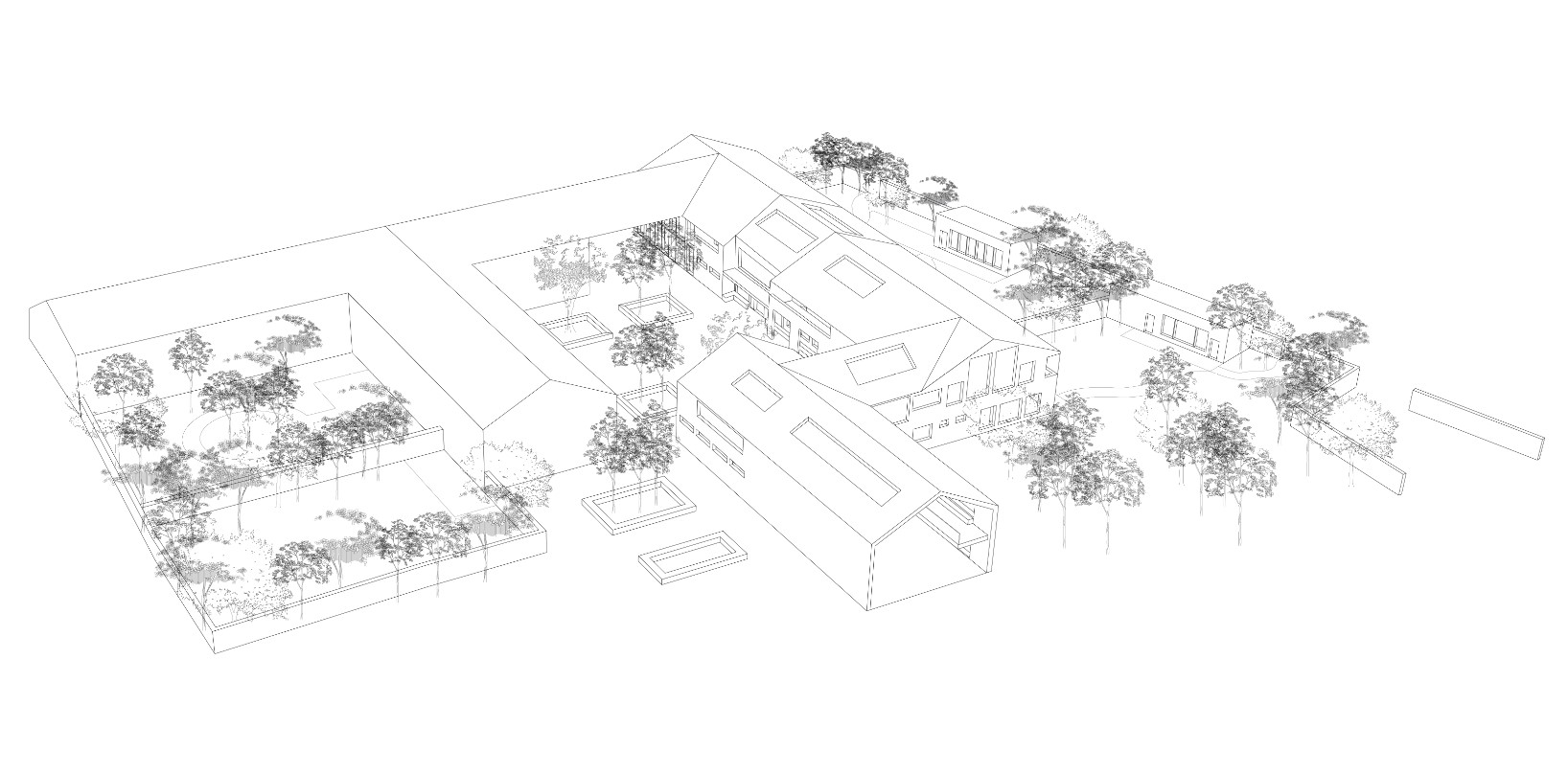

Master Plan 3D Visualisation
Key Project Themes
Community Connections Map
1:200 South West Courtyard Elevation
Community Hub North Entrance Visualisation
Community Hub South West Entrance Courtyard Visualisation
Care Home and Community Hub Hydrotherapy Pool Visualisation
Community Hub | Design Concept
At the north entrance of the site we located a new community Hub, the majority of the community facilities are currently located in the northern, historic town centre of Mussleburgh. This has left the residents of the south of the town with more than 25 minutes’ walk from community facilities. The new community hub is particularly important given that the adjacent community such as Stoneybank have a high density of residents over 65 years old. The new community hub also includes a community theatre and is connected to a block of student housing. The community hub structure emulates the traditional barn architype as the land the site is on has historically been agricultural. The community hub aims to be thriving and engaging intergenerational space where both young and senior citizens from the local community can come together and inhabit the building through education, leisure and generate community spirit. The program of the community hub endeavors to invigorate the site and challenge the orthodoxies of how we believe an older life can and should be lived and placing gerontological affordance at the heart of civic buildings.
Structural Exploded Axonometric

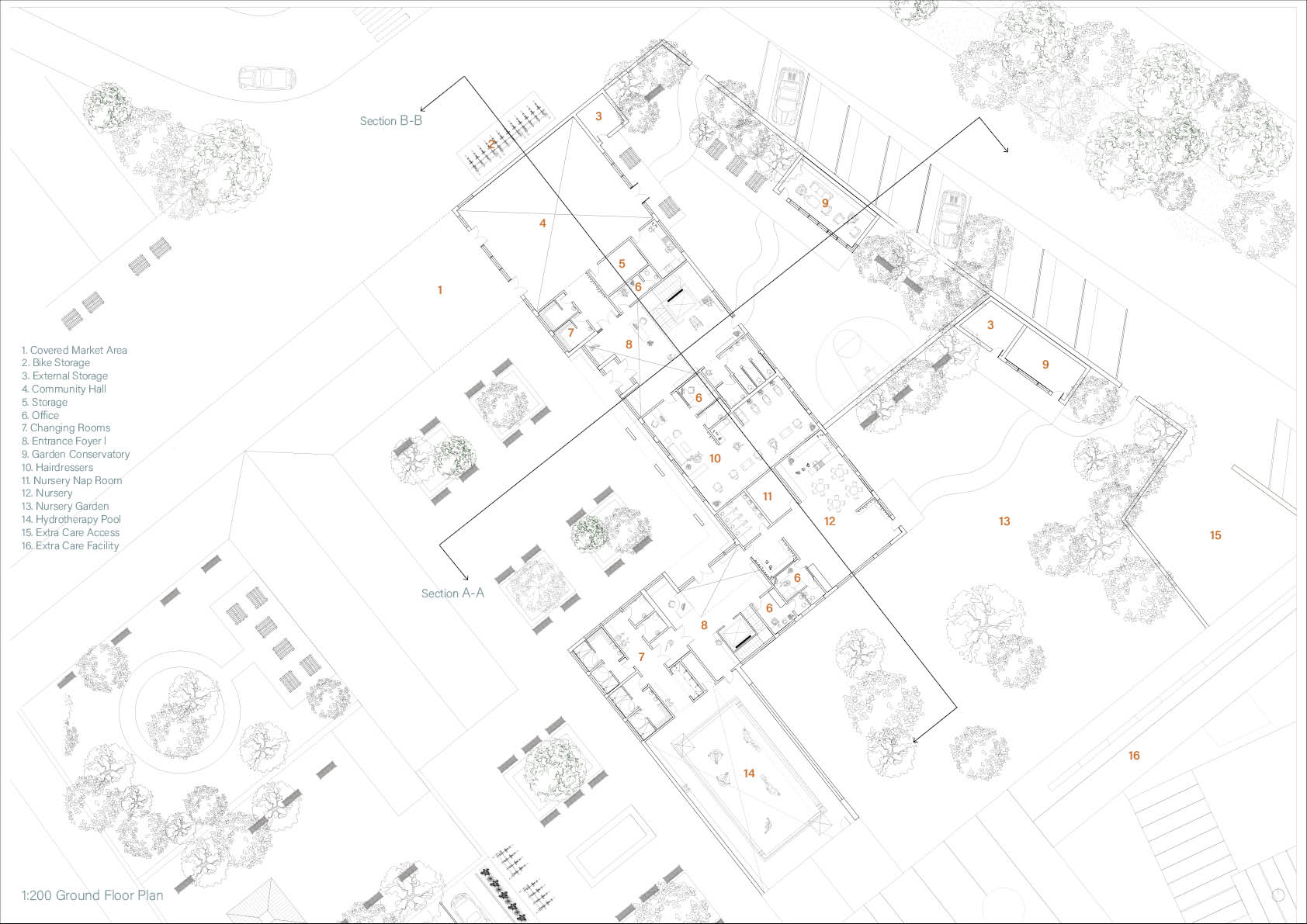

1:200 Ground Floor Plan

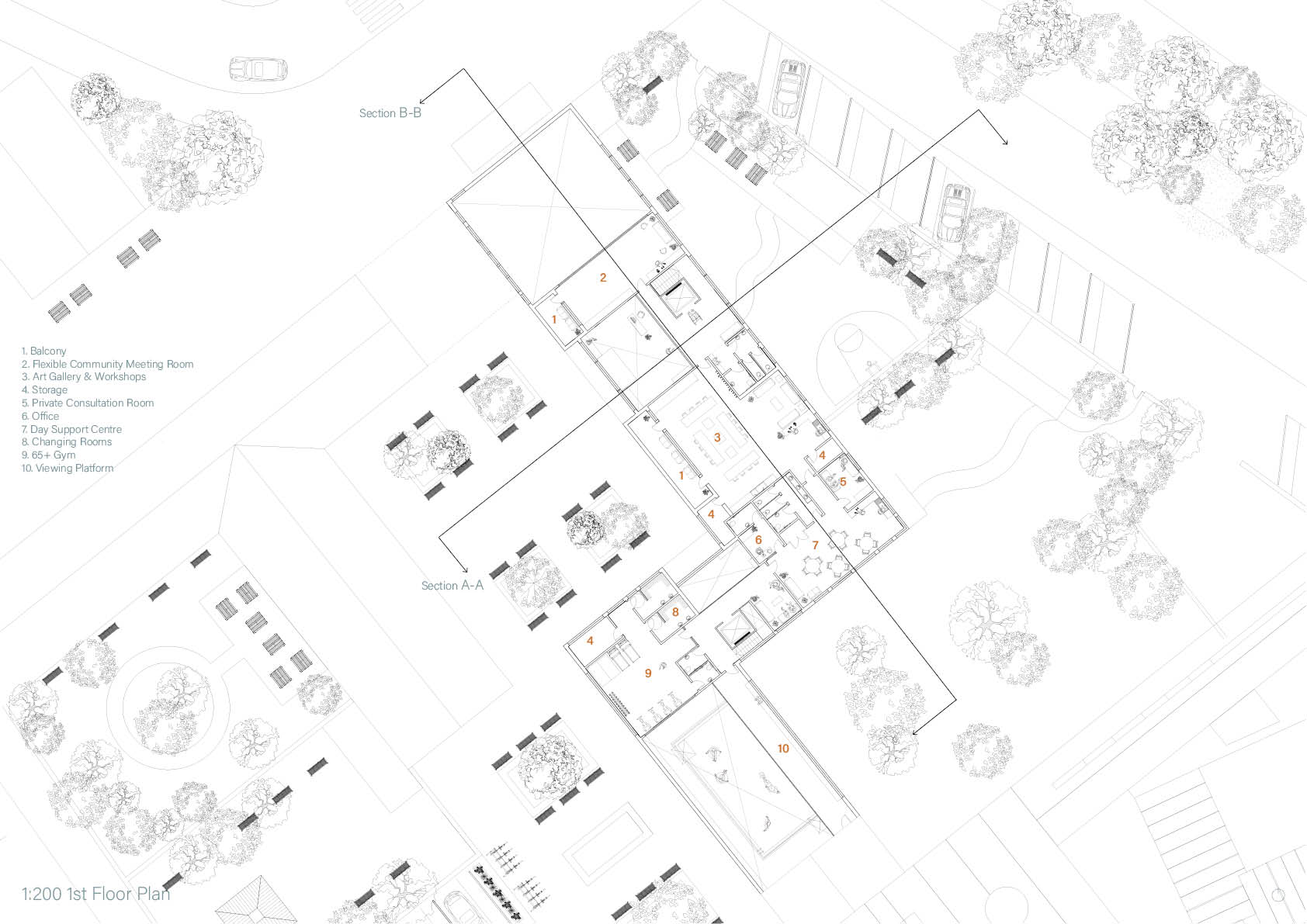

1st Floor Plan Scale 1:100

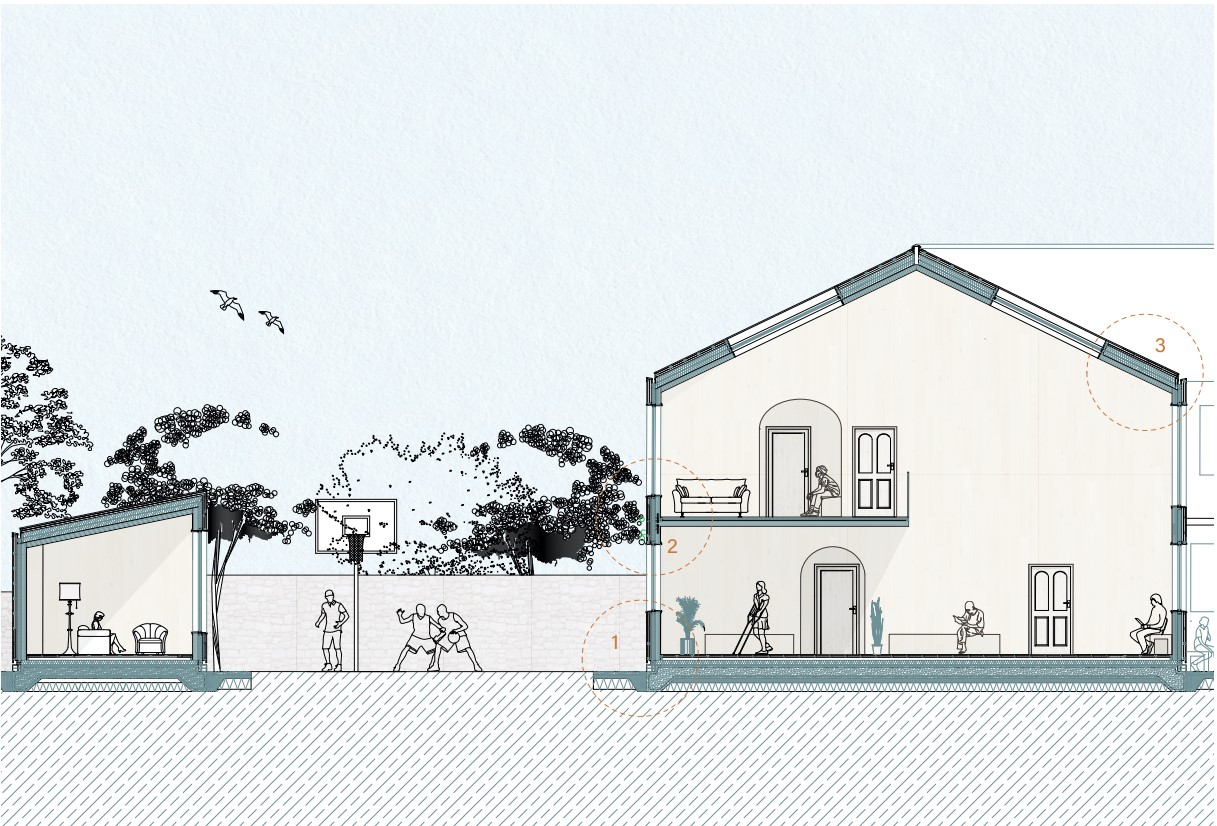

1:50 Section A-A | Technical Section
1:5 Technical Detail | Foundation to Wall

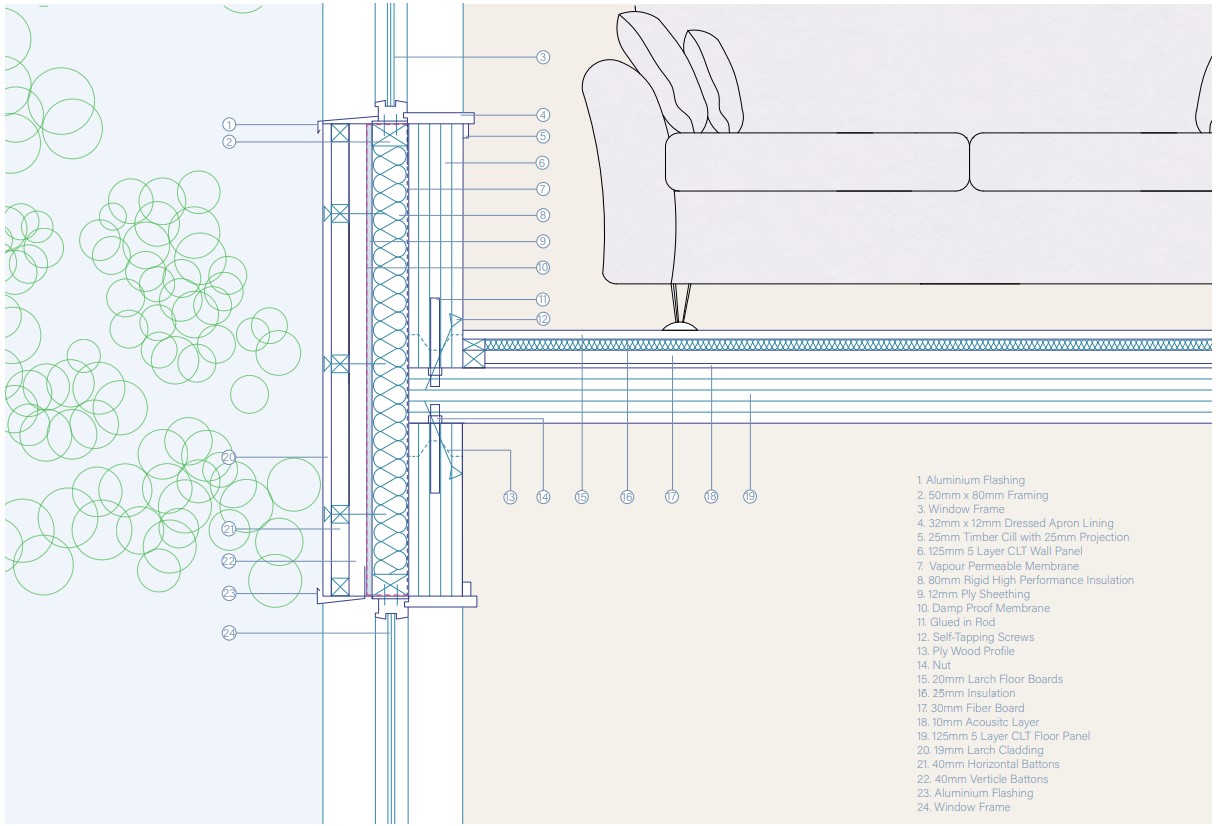

1:5 Technical Detail | Wall and 1st Floor Junction

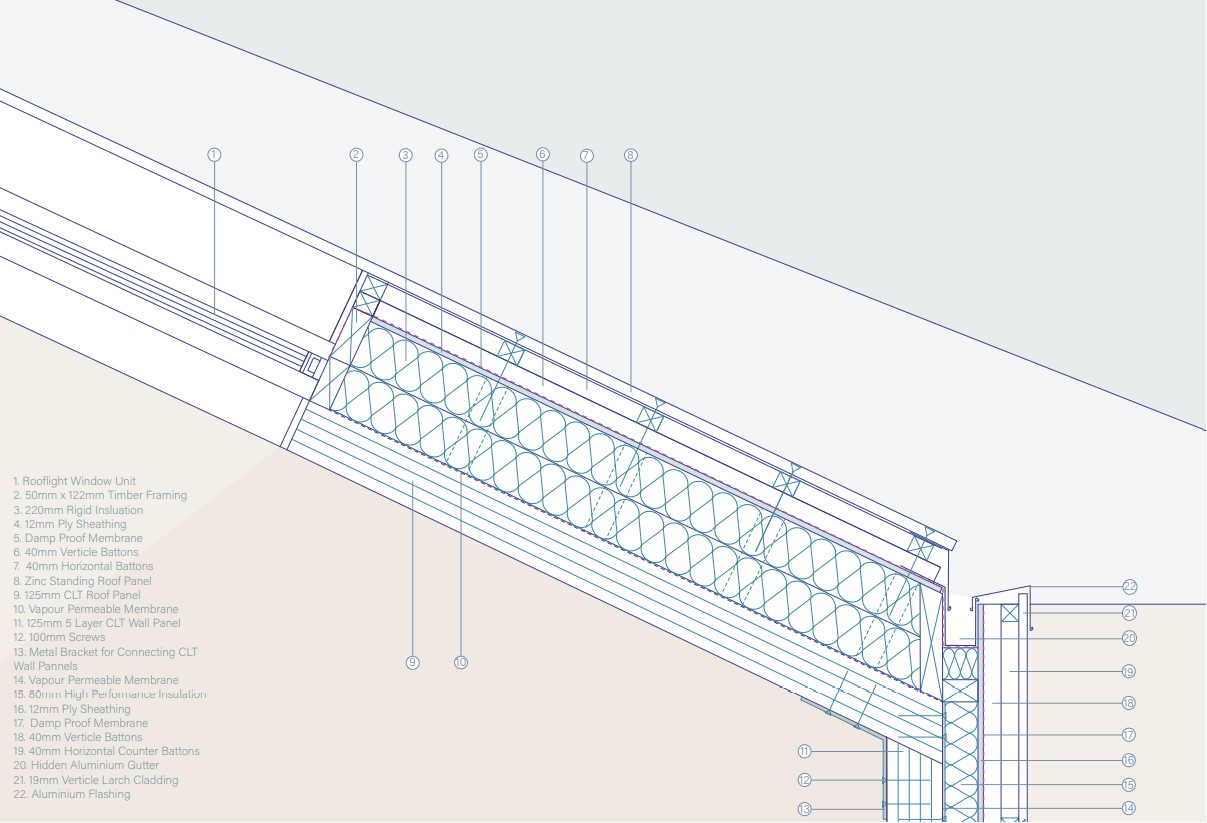

1:5 Technical Detail | Wall and Roof
